Description
Details

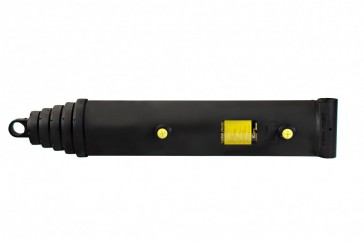

85-4402-235
Cylinder Tube OD: 9.12"
Operating Pressure: 2,000 psi
# of Stages: 5
Largest Moving Stage Diameter: 8.00"
Stroke: 234.25"
Closed: 65.00"
Extended: 299.25"
Base Mount Width: 9.50"
Base Mount Diameter: 2.12"
Plunger Mount Width: 2.00"
Plunger Mount Diameter: 2.03"
Oil Capacity Fill Gal(L): 5.8 (22.5)
Oil Capacity Extended Gal(L): 29.7 (115.1)
Dry Weight: 604
Warranty: 24 months
Self-Bleeding design
Pre-loaded v-packing with a self- adjusting wave spring energizer to maintain a continuous force on the packing
Threaded headnuts for added strength and field seal adjustment
Longer Bearing Length (overlap) for stability
Cylinder Tube OD: 9.12"
Operating Pressure: 2,000 psi
# of Stages: 5
Largest Moving Stage Diameter: 8.00"
Stroke: 234.25"
Closed: 65.00"
Extended: 299.25"
Base Mount Width: 9.50"
Base Mount Diameter: 2.12"
Plunger Mount Width: 2.00"
Plunger Mount Diameter: 2.03"
Oil Capacity Fill Gal(L): 5.8 (22.5)
Oil Capacity Extended Gal(L): 29.7 (115.1)
Dry Weight: 604
Warranty: 24 months
Self-Bleeding design
Pre-loaded v-packing with a self- adjusting wave spring energizer to maintain a continuous force on the packing
Threaded headnuts for added strength and field seal adjustment
Longer Bearing Length (overlap) for stability
Specs
Additional Info
| Cylinder Type | Telescopic |
|---|---|
| Max PSI | 2000 |
| # of Stages | 5 |
| Bore Size | 8" |
| Stroke | 234.25" |
| Retracted Length | 65" |
| Extended Length | 299.25" |
| Base Mount Width | 9.5" |
| Base Mount Diameter | 2.12" |
| Plunger Mount Width | 2" |
| Plunger Mount Diameter | 2.03" |
| Oil Capacity - Fill | 5.8 Gallons |
| Oil Capacity - Extended | 29.7 Gallons |
| SKU | 208-85235 |
| Mfg Part Num | 85-4402-235 |
