Description
Details

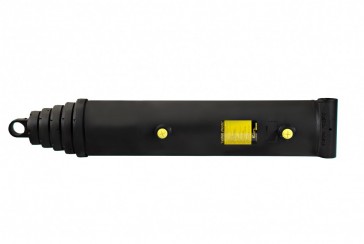

53-4592-106
Cylinder Tube OD: 6.03"
Operating Pressure: 3,000 psi
# of Stages: 3
Largest Moving Stage Diameter: 5.00"
Stroke: 106.06"
Closed: 48.00"
Extended: 154.06"
Base Mount Width: 7.00"
Base Mount Diameter: 2.06"
Plunger Mount Width: 1.50"
Plunger Mount Diameter: 2.06"
Oil Capacity Fill Gal(L): 1.7 (6.6)
Oil Capacity Extended Gal(L): 6.0 (23.3)
Dry Weight: 204
Warranty: 24 months
Self-Bleeding design
Pre-loaded v-packing with a self- adjusting wave spring energizer to maintain a continuous force on the packing
Threaded headnuts for added strength and field seal adjustment
Longer Bearing Length (overlap) for stability
Cylinder Tube OD: 6.03"
Operating Pressure: 3,000 psi
# of Stages: 3
Largest Moving Stage Diameter: 5.00"
Stroke: 106.06"
Closed: 48.00"
Extended: 154.06"
Base Mount Width: 7.00"
Base Mount Diameter: 2.06"
Plunger Mount Width: 1.50"
Plunger Mount Diameter: 2.06"
Oil Capacity Fill Gal(L): 1.7 (6.6)
Oil Capacity Extended Gal(L): 6.0 (23.3)
Dry Weight: 204
Warranty: 24 months
Self-Bleeding design
Pre-loaded v-packing with a self- adjusting wave spring energizer to maintain a continuous force on the packing
Threaded headnuts for added strength and field seal adjustment
Longer Bearing Length (overlap) for stability
Specs
Additional Info
| Cylinder Type | Telescopic |
|---|---|
| Max PSI | 3000 |
| # of Stages | 3 |
| Bore Size | 5" |
| Stroke | 106.06" |
| Retracted Length | 48" |
| Extended Length | 154.06" |
| Base Mount Width | 7" |
| Base Mount Diameter | 2.06" |
| Plunger Mount Width | 1.5" |
| Plunger Mount Diameter | 2.06" |
| Oil Capacity - Fill | 1.7 Gallons |
| Oil Capacity - Extended | 6 Gallons |
| SKU | 208-53106 |
| Mfg Part Num | 53-4592-106 |
